| Leitungslänge |
1 m
|
| UL AWM Style |
2464/1061 |
| Polzahl |
14 |
| Geschirmt |
nein |
| Leitungstyp |
14X0.14 [PVC] |
| Leiterart |
Konfektioniertes Rundkabel |
| Leiteraufbau Signalleitung |
7x 0,16 mm |
| AWG Signalleitung |
26 |
| Leitungsquerschnitt |
14x 0,14 mm² |
| Aderdurchmesser inklusive Isolierung |
1 mm ±0,03 mm |
| Leitungsaußendurchmesser |
6,40 mm ±0,4 mm |
| Außenmantel, Material |
Semi-Rigid-PVC |
| Außenmantel, Farbe |
grau |
| Material Leiter |
verzinnte Cu-Litze |
| Leitungs-Widerstand |
<= 145 Ohm/km (20 °C) |
| Isolationswiderstand |
>= 20 MOhm*km (20 °C) |
| Kleinster Biegeradius, fest verlegt |
55 mm
|
| Kleinster Biegeradius, beweglich verlegt |
104 mm
|
| Dynamische Belastbarkeit (Biegen) |
Biegezyklen maximal: 5000 (bei Radius >= 15x Außendurchmesser) |
| Halogenfreiheit |
nein |
| Flammwidrigkeit |
IEC 60332-1-2 (Rohleitung) |
| Flammwidrigkeit (2) |
VDE 0842, Teil 332-1-2 (Rohleitung) |
| Flammwidrigkeit (3) |
IEC 60332-3-22 (Rohleitung) |
| Flammwidrigkeit (4) |
UL VW-1 |
| Flammwidrigkeit (5) |
CSA FT-1 |
| Ölbeständigkeit |
gegen gelegentliche Spritzer (Rohleitung) |

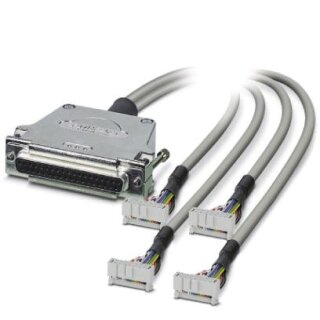

| Kabelausführung |
Splitting-Kabel für vier Module |
| schwarz |
D-SUB37 (1) = IDC/FLK14-1 (1) |
| braun |
D-SUB37 (20) = IDC/FLK14-1 (2) |
| rot |
D-SUB37 (2) = IDC/FLK14-1 (3) |
| orange |
D-SUB37 (21) = IDC/FLK14-1 (4) |
| gelb |
D-SUB37 (3) = IDC/FLK14-1 (5) |
| grün |
D-SUB37 (22) = IDC/FLK14-1 (6) |
| blau |
D-SUB37 (4) = IDC/FLK14-1 (7) |
| violett |
D-SUB37 (23) = IDC/FLK14-1 (8) |
| grau |
D-SUB37 (17) = IDC/FLK14-1 (9) |
| weiß |
D-SUB37 (19) = IDC/FLK14-1 (10) |
| weiß-schwarz |
D-SUB37 (18) = IDC/FLK14-1 (11) |
| weiß-braun |
D-SUB37 (36) = IDC/FLK14-1 (13) |
| schwarz (2) |
D-SUB37 (5) = IDC/FLK14-2 (1) |
| braun (2) |
D-SUB37 (24) = IDC/FLK14-2 (2) |
| rot (2) |
D-SUB37 (6) = IDC/FLK14-2 (3) |
| orange (2) |
D-SUB37 (25) = IDC/FLK14-2 (4) |
| gelb (2) |
D-SUB37 (7) = IDC/FLK14-2 (5) |
| grün (2) |
D-SUB37 (26) = IDC/FLK14-2 (6) |
| blau (2) |
D-SUB37 (8) = IDC/FLK14-2 (7) |
| violett (2) |
D-SUB37 (27) = IDC/FLK14-2 (8) |
| grau (2) |
D-SUB37 (17) = IDC/FLK14-2 (9) |
| weiß (2) |
D-SUB37 (19) = IDC/FLK14-2 (10) |
| weiß-schwarz (2) |
D-SUB37 (18) = IDC/FLK14-2 (11) |
| weiß-braun (2) |
D-SUB37 (36) = IDC/FLK14-2 (13) |
| schwarz (3) |
D-SUB37 (9) = IDC/FLK14-3 (1) |
| braun (3) |
D-SUB37 (28) = IDC/FLK14-3 (2) |
| rot (3) |
D-SUB37 (10) = IDC/FLK14-3 (3) |
| orange (3) |
D-SUB37 (29) = IDC/FLK14-3 (4) |
| gelb (3) |
D-SUB37 (11) = IDC/FLK14-3 (5) |
| grün (3) |
D-SUB37 (30) = IDC/FLK14-3 (6) |
| blau (3) |
D-SUB37 (12) = IDC/FLK14-3 (7) |
| violett (3) |
D-SUB37 (31) = IDC/FLK14-3 (8) |
| grau (3) |
D-SUB37 (17) = IDC/FLK14-3 (9) |
| weiß (3) |
D-SUB37 (37) = IDC/FLK14-3 (10) |
| weiß-schwarz (3) |
D-SUB37 (18) = IDC/FLK14-3 (11) |
| weiß-braun (3) |
D-SUB37 (36) = IDC/FLK14-3 (13) |
| schwarz (4) |
D-SUB37 (13) = IDC/FLK14-4 (1) |
| braun (4) |
D-SUB37 (32) = IDC/FLK14-4 (2) |
| rot (4) |
D-SUB37 (14) = IDC/FLK14-4 (3) |
| orange (4) |
D-SUB37 (33) = IDC/FLK14-4 (4) |
| gelb (4) |
D-SUB37 (15) = IDC/FLK14-4 (5) |
| grün (4) |
D-SUB37 (34) = IDC/FLK14-4 (6) |
| blau (4) |
D-SUB37 (16) = IDC/FLK14-4 (7) |
| violett (4) |
D-SUB37 (35) = IDC/FLK14-4 (8) |
| grau (4) |
D-SUB37 (17) = IDC/FLK14-4 (9) |
| weiß (4) |
D-SUB37 (37) = IDC/FLK14-4 (10) |
| weiß-schwarz (4) |
D-SUB37 (18) = IDC/FLK14-4 (11) |
| weiß-braun (4) |
D-SUB37 (36) = IDC/FLK14-4 (13) |
